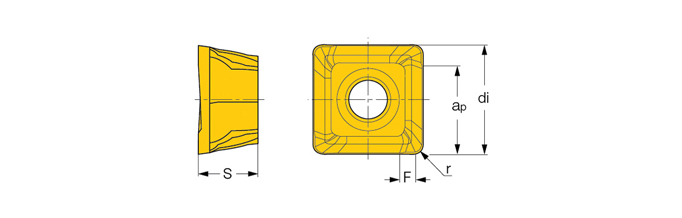

S90MT 1106PC-R
Milling Insert; S90MT1106PC-R IC910 IC910 × 0.236″ Thickness ; Carbide ; TiAlN
| Applicable Material | Steel|Cast Iron | Grade | IC910 |
| Application | | Facing | Milling Inserts | Profiling | | Shape | Square |
| Corner Radius (RE) | 0.031″ | Maximum Feed per Tooth (fz(max)) | 0.0059 inch/tooth |
| Depth of Cut Maximum (APMX) | 0.343″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.429″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0031 inch/tooth |
| Wiper Edge Length (BS) | 0.051″ | Measurement Type | Metric |
| Coating | AlTiN | Body Material | Carbide |
Product Features
| Family Description | CHAMMILL square shoulder milling inserts. Part of the CHAMELEON multifunction line. | Country of Origin | Israel |
Shipping Info
Package Weight
0.013
