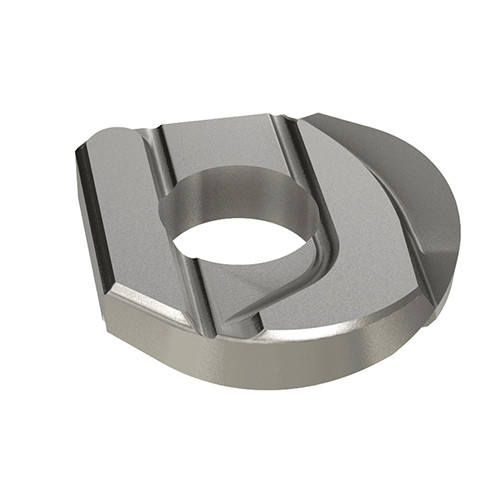

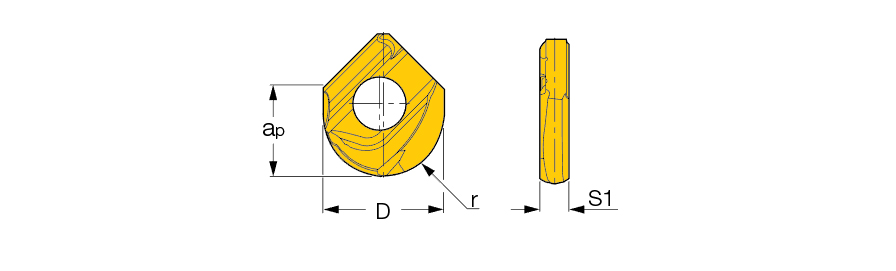

HCR D.75-QP IC928
Milling Insert; HCRD.75QP IC928 IC928 × 0.183″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.008 ″/tooth |
| Application | | Helical Interpolation | Profiling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 3/8″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.615″ | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Insert Thickness (S) | 0.183″ | Number of Cutting Edges | 2 |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC928 | Body Material | Carbide |
| Shape | Round |
Product Features
| Family Description | Ball nose inserts with 2 straight tangent cutting edges (fully effective) for cavity profiling and shouldering. Due to its high accuracy (.0004″), can be used for roughing and finishing. | Country of Origin | Israel |
| Remarks | QF - For general use applications QP - Positive chipformer for low cutting forces. Recommended for machining aluminum, titanium and other exotic materials. |
Shipping Info
Package Weight
0.038
