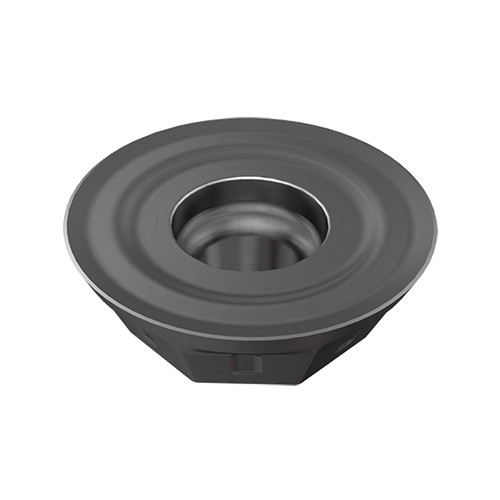

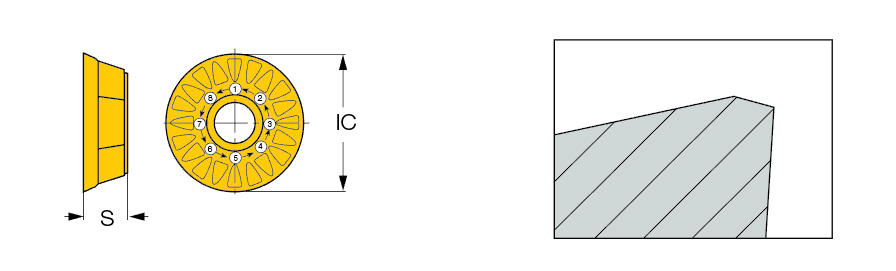

REMT 1505-LM-76 IC928
Milling Insert; REMT1505LM76 IC928 IC928 × 0.206″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Application | | Facing | Profiling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.3126″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 5/8″ | Minimum Feed per Tooth (fz(min)) | 0.0047 ″/tooth |
| Insert Thickness (S) | 0.206″ | Number of Cutting Edges | 8 |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC928 | Body Material | Carbide |
| Shape | Round |
Product Features
| Family Description | Round milling inserts with ribs on the rake face. Used on the HELIOCTO tools. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances click on More Info. |
Shipping Info
Package Weight
0.019
