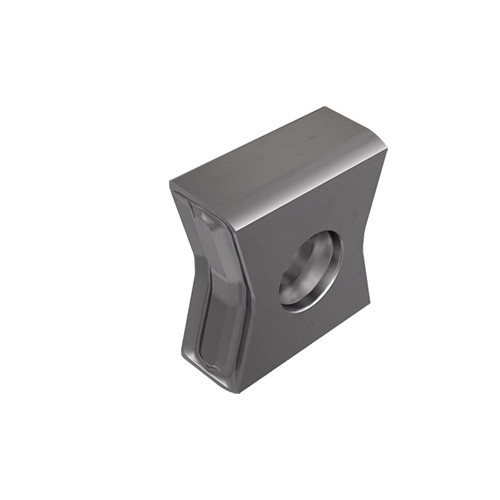

LNAT 1506PN-W IC908
Milling Insert; LNAT1506PN-W IC908 IC908 × 0.235″ Width × 0.545″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | Rectangle |
| Application | | Facing | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |

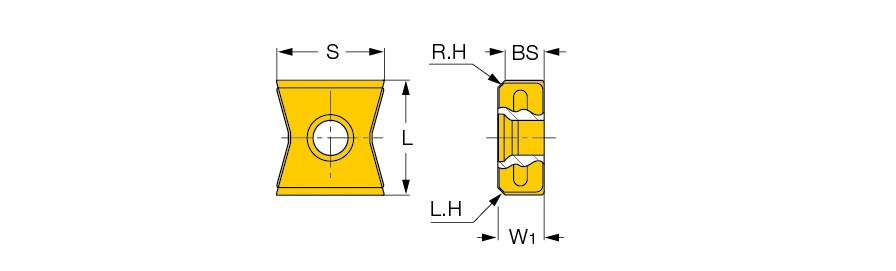

| Insert Length (INSL) | 0.598″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.235″ | Tool Type | Mill Tangential Inserts |
| Insert Thickness (S) | 0.545″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Wiper Edge Length (BS) | 0.189″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 |
Product Features
| Family Description | TANGMILL tangentially clamped wiper inserts. | Country of Origin | Israel |
| Remarks | Wiper insert with two right- and two left-hand wipers for 90° lead angle in F90LN cutters When feed per revolution is less than .157, it is recommended to use only one wiper insert. For feed per revolution greater than .157, use two wiper inserts |
Shipping Info
Package Weight
0.033
