RXMT 10T3-RM IC950
Milling Insert; RXMT10T3-RM IC950 IC950 × 0.156″ Thickness ; Carbide
| Applicable Material | | Steel | Cast Iron | | Cutting Direction (HAND) | Neutral |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | Slotting | | Cutting Edge Material | Carbide |

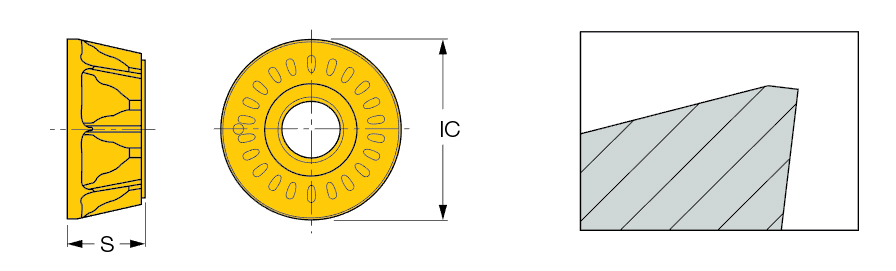

| Inscribed Circle Diameter (IC) | 0.394″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.156″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Grade | IC950 | Number of Cutting Edges | 8 |
| Shape | Round | Measurement Type | Inch |
| Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth | Body Material | Carbide |
Product Features

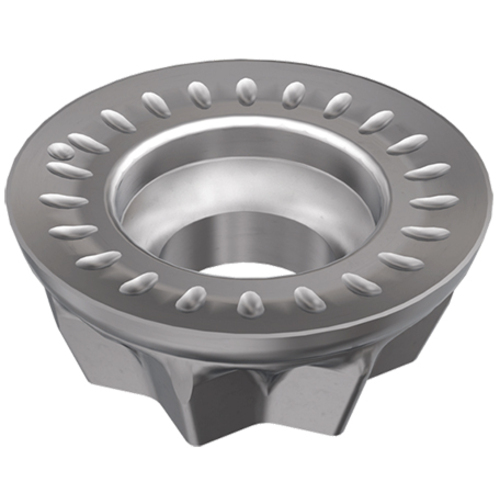

| Family Description | Round milling inserts with chipformers. Star shaped bottom for indexing and preventing insert rotation. | Country of Origin | Israel |
Shipping Info
Package Weight
0.006
