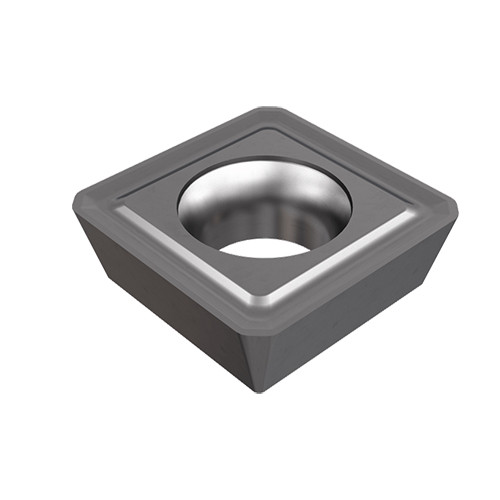

SDMT 32AD-N IC520M
Milling Insert; SDMT32ADN IC520M HQ IC520M × 1/8″ Thickness ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Application | | Chamfering & Bottom Deburring | Countersinking | Slanted Shoulder & Chamfer | | Cutting Direction (HAND) | Right / Left |
| Insert Length (INSL) | 3/8″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.22″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 1/8″ | Minimum Feed per Tooth (fz(min)) | 0.0047 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 4 |
| Coating | TiCN | Measurement Type | Inch |
| Grade | IC520M | Body Material | Carbide |
| Shape | Square |
Product Features
| Family Description | Inserts for general use on 45° endmills. | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Length
3.87500
Package Width
1.62500
Package Height
.43750
Package Weight
0.008
