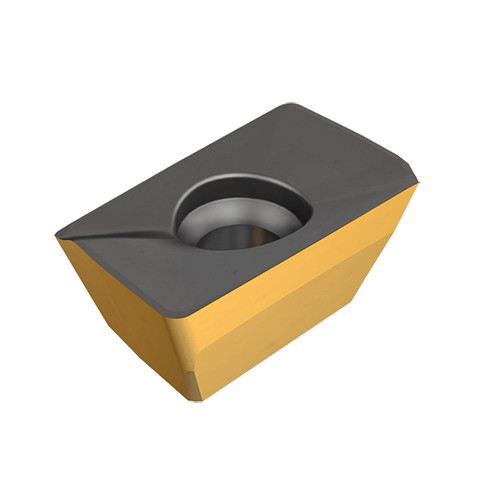

HM90 ADCT 1505PDR-CF IC830
Milling Insert; 0.618″ Length × 0.366″ Width × 0.252″ Thickness ; IC830 ; Carbide ; AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Drill Mill | Facing | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |

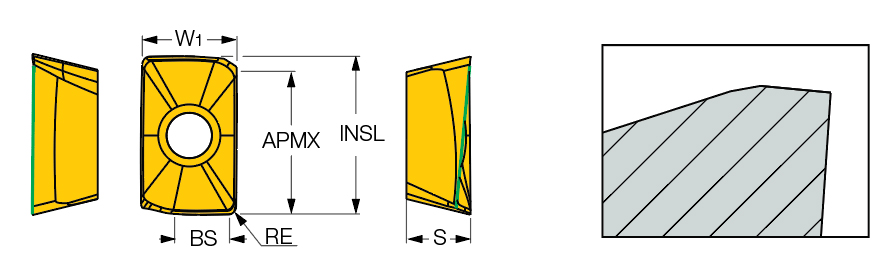

| Cutting Edge Length (L) | 0.618″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.618″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.551″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Width (W1) | 0.366″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.252″ | Cutting Edge Effective Length (LE) | 0.551″ |
| Wiper Edge Length (BS) | 0.165″ | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 |
Product Features
| Family Description | Inserts with 2 different cutting edge configurations. Designed for chatter dampening. Most effective in long overhang and non-rigid workpiece clamping systems. | Country of Origin | Israel |
Shipping Info
Package Weight
0.02
