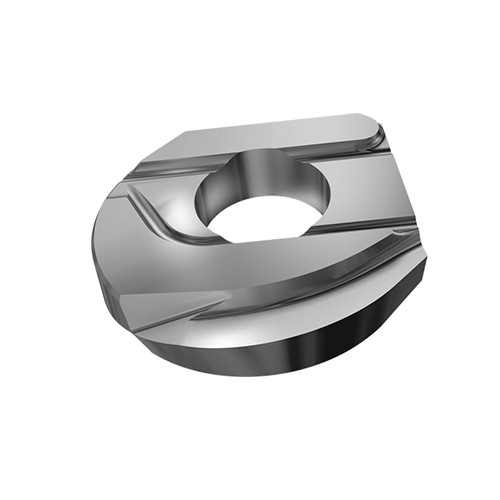

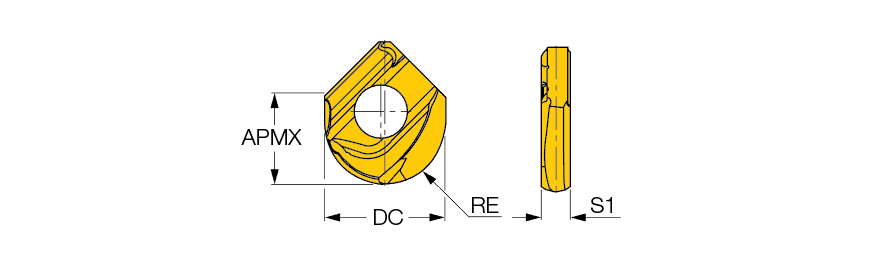

HCR D100-QF IC908
Milling Insert; HCRD100-QF IC908 IC908 × 2.3 mm Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Helical Interpolation | Profiling | | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 5 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 7 mm | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 2.3 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Coating | TiAlN | Number of Cutting Edges | 2 |
| Grade | IC908 | Measurement Type | Metric |
| Shape | Round | Body Material | Carbide |
Product Features
| Family Description | Ball nose inserts with 2 straight tangent cutting edges (fully effective) for cavity profiling and shouldering. Due to its high accuracy (0.01 mm), can be used for roughing and finishing. | Country of Origin | Israel |
| Remarks | QF - For general use applications QP - Positive chipformer for low cutting forces. Recommended for machining aluminum, titanium and other exotic materials. |
Shipping Info
Package Length
.50000
Package Width
.50000
Package Height
.12500
Package Weight
0.007
