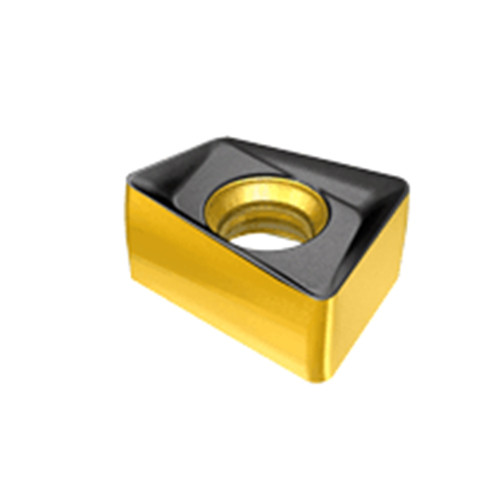

H490 ANCX 090408PDR IC830
Milling Insert; H490 ANCX 090408PDR IC830 IC830 × 0.256″ Width × 0.205″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC830 |
| Application | | Counter Boring | Facing | Shouldering | Side Plunging | Slotting | | Shape | 85° Parallelogram |

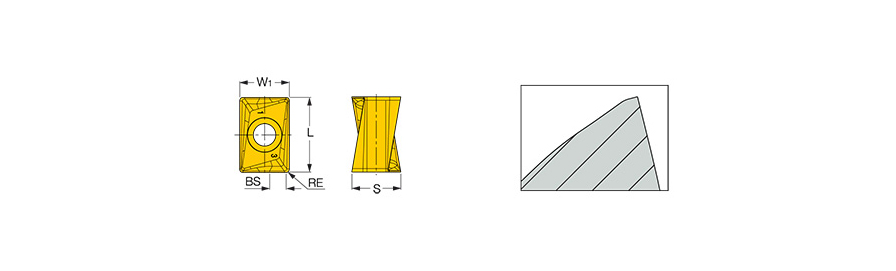

| Insert Length (INSL) | 0.335″ | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.315″ | Tool Type | Double sided Inserts |
| Insert Width (W1) | 0.256″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.205″ | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 0.173″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | AlTiN+TiN |
Product Features
| Family Description | Double-sided rectangular inserts with 4 helical cutting edges. Very strong construction, may be used for heavy applications. (HELIDO 490 line). | Country of Origin | Israel |
| Remarks | ANKX-Utility inserts, ANCX-Precision inserts. |
Shipping Info
Package Length
.34000
Package Width
.26000
Package Height
.19000
Package Weight
0.008
