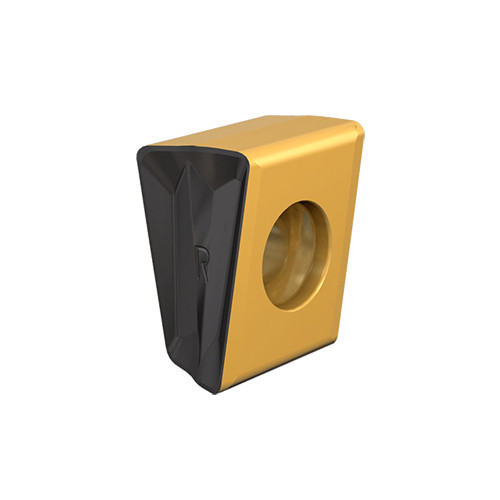

T490 LNHT 130624PNTR IC810
Milling Insert; T490LNHT130624PNTR 810 IC810 × 0.262″ Width × 0.492″ Thickness ; Carbide ; AlTiCrN+TiN
| Applicable Material | | Steel | Cast Iron | | Shape | Rectangle |
| Application | | Bottom Shouldering | Facing | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Insert Length (INSL) | 0.544″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0945″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.492″ | Tool Type | Mill Tangential Inserts |

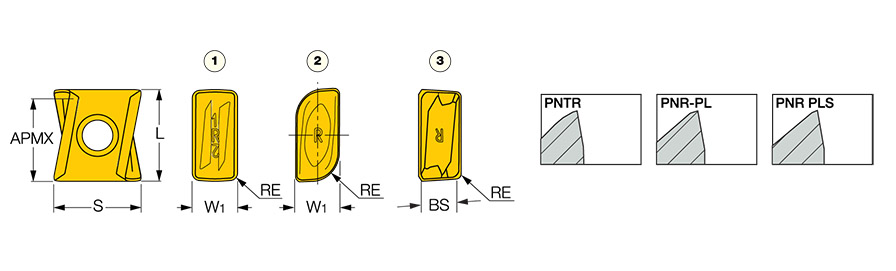

| Insert Width (W1) | 0.262″ | Figure | 1. |
| Insert Thickness (S) | 0.492″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Wiper Edge Length (BS) | 0.051″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiCrN+TiN | Body Material | Carbide |
| Grade | IC810 |
Product Features
| Family Description | HELITANG - Tangentially clamped inserts with 4 helical cutting edges. The unique pocket design prevents insert pull-out and enables tools with larger core diameters compared with regular radially orientated inserts. | Country of Origin | Israel |
| Remarks | LNMT-utility inserts, LNHT-precision inserts. |
Shipping Info
Package Weight
0.025
