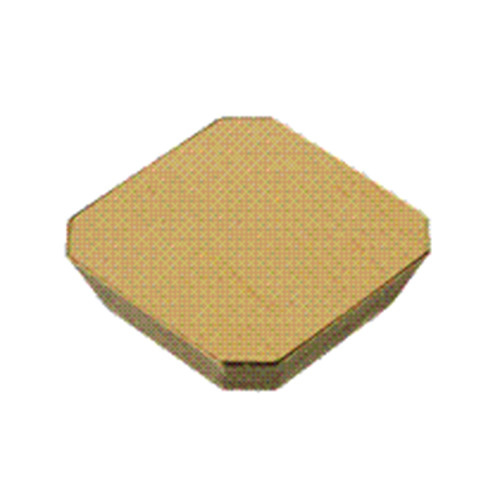

SEA 42AF-N IC20
Milling Insert; SEA 42AF-N IC20 IC20 × 1/8″ Thickness ; Carbide ; Uncoated
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | IC20 |
| Application | | Facing | Plunging & Recessing | Slanted Shoulder & Chamfer | | Shape | Square |

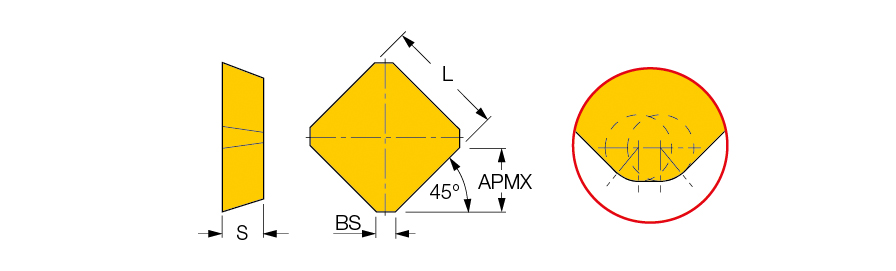

| Insert Length (INSL) | 1/2″ | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.256″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 1/8″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Wiper Edge Length (BS) | 0.071″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | Flat rake face milling inserts for general use. | Country of Origin | Israel |
Shipping Info
Package Weight
0.016
