T290 LNMT 050204TR
Milling Insert; 0.226″ Length × 0.106″ Width × 0.23″ Thickness ; IC5100 ; Carbide ; TiCN|Al2O3
| Applicable Material | Steel|Cast Iron | Grade | IC5100 |
| Application | | Facing | Milling Inserts | Profiling | | Shape | Rectangle |

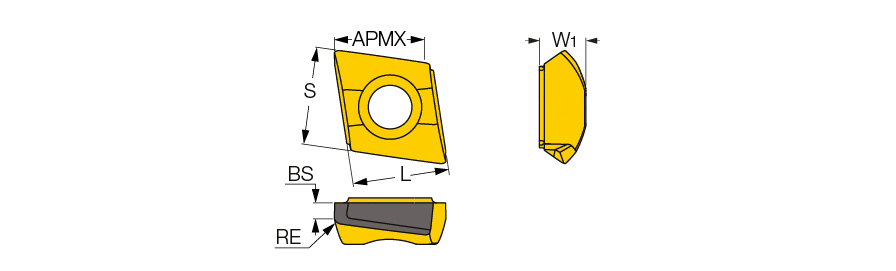

| Cutting Edge Length (L) | 0.226″ | Maximum Feed per Tooth (fz(max)) | 0.0031 inch/tooth |
| Corner Radius (RE) | 0.016″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.197″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.106″ | Minimum Feed per Tooth (fz(min)) | 0.0016 inch/tooth |
| Insert Thickness (S) | 0.23″ | Measurement Type | Metric |
| Wiper Edge Length (BS) | 0.039″ | Body Material | Carbide |
| Coating | TiCN|Al2O3 |
Product Features
| Family Description | SUMOMILL Tangential inserts with 2 cutting edges. | Country of Origin | Israel |
| Remarks | LNMT-utility inserts. LNHT-precision inserts. |
Shipping Info
Package Weight
0.004
