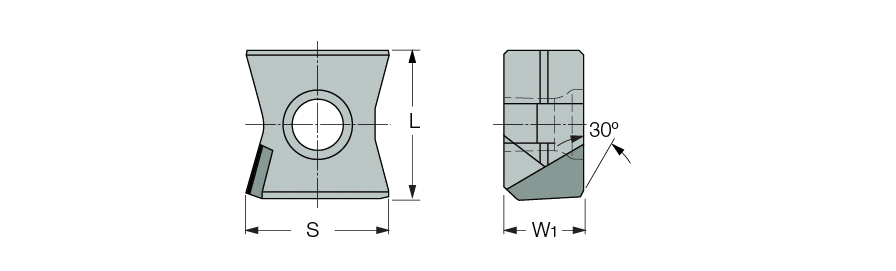

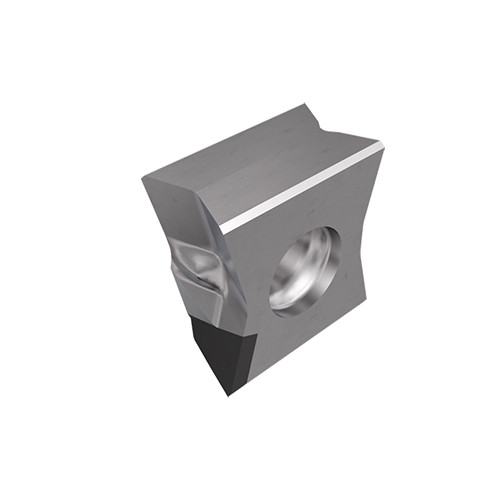

LNAR 1106PN-R-S-W ID5
Milling Insert; LNAR 1106PN-R-S-W ID5 ID5 × 0.235″ Width × 0.423″ Thickness ; PCD ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | Rectangle |
| Application | | Facing | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Insert Length (INSL) | 0.443″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0″ | Cutting Edge Material | PCD |
| Depth of Cut Maximum (APMX) | 0.079″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.235″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.423″ | Number of Cutting Edges | 1 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Grade | ID5 | Body Material | Carbide |
Product Features
| Family Description | TANGMILL tangentially clamped, wiper milling inserts with a positive rake ID5 PCD tips, used for machining aluminum. The insert has a frontal radius and sharp cutting edge. It provides a uniform clean-cut edge and excellent surface finish | Country of Origin | Italy |

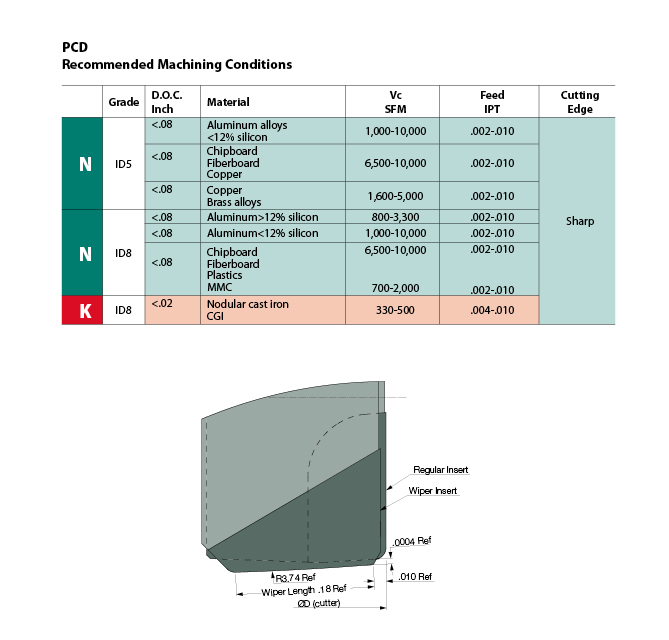

| Remarks | The chamfered corner is used for reduced chipping on the machined component edges For D.O.C., cutting speed recommendations and corner configurations, click on More Info The wiper insert should not be used with LNAR 110620x75PN-R-S inserts |
Shipping Info
Package Weight
0.033
