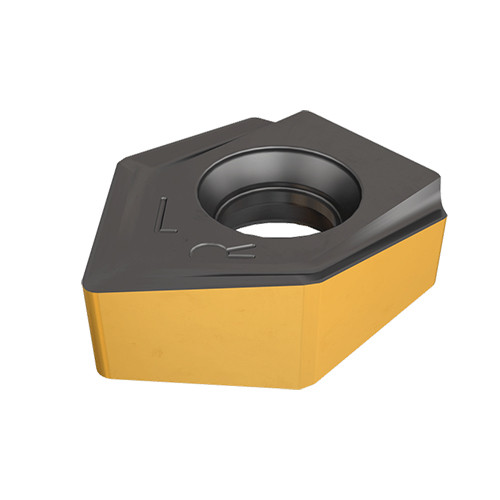

S845 SNHU 1305AN-N-W IC808
Milling Insert; S845SNHU1305ANNW 808 IC808 × 0.232″ Thickness ; Carbide ; TiAlN+AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Application | | Facing | Slanted Shoulder & Chamfer | | Cutting Direction (HAND) | Right / Left |

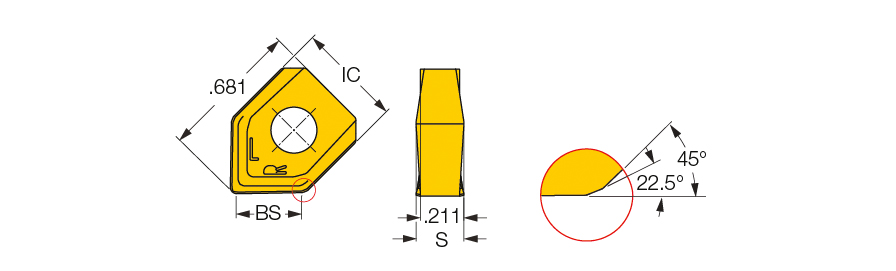

| Inscribed Circle Diameter (IC) | 0.512″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.232″ | Tool Type | Double sided Inserts |
| Wiper Edge Length (BS) | 0.319″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 4 |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808 | Body Material | Carbide |
| Shape | Round |
Product Features
| Family Description | Double-sided wiper inserts with 4 cutting edgese (HELIDO 845 line). | Country of Origin | Israel |
| Remarks | When a wiper insert is being used, recommended ap=.315-.118,fz=.0039-.0079 IPT. To be used with S845 SNMU/SNHU 13.. inserts. |
Shipping Info
Package Weight
0.026
