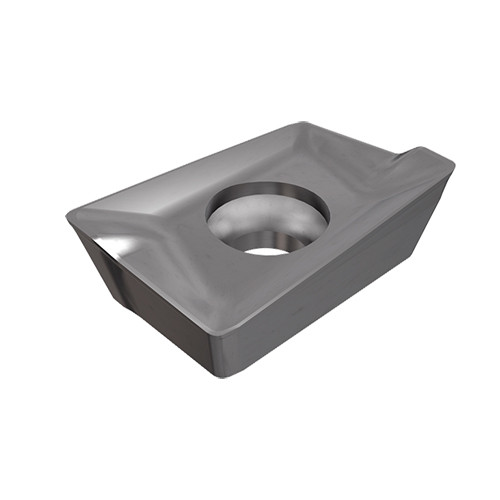

APKT 100320PDTR-RM IC328
Milling Insert; 0.429″ Length × 0.264″ Width × 0.137″ Thickness ; IC328 ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Bottom Shouldering | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |

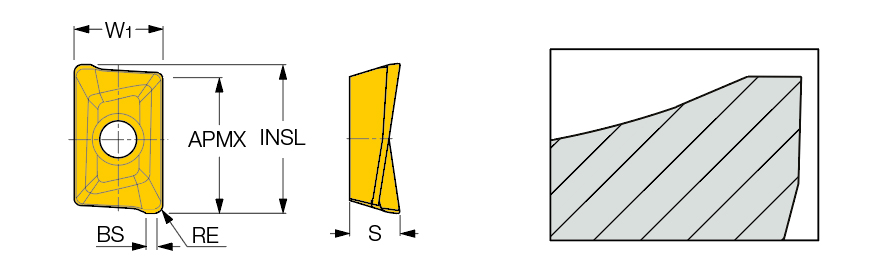

| Cutting Edge Length (L) | 0.429″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.429″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0787″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.3622″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Width (W1) | 0.264″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.137″ | Cutting Edge Effective Length (LE) | 0.384″ |
| Wiper Edge Length (BS) | 0.031″ | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC328 |
Product Features
| Family Description | Inserts with reinforced cutting edge (for machining under unfavorable conditions) | Country of Origin | Israel |
Shipping Info
Package Weight
0.007
