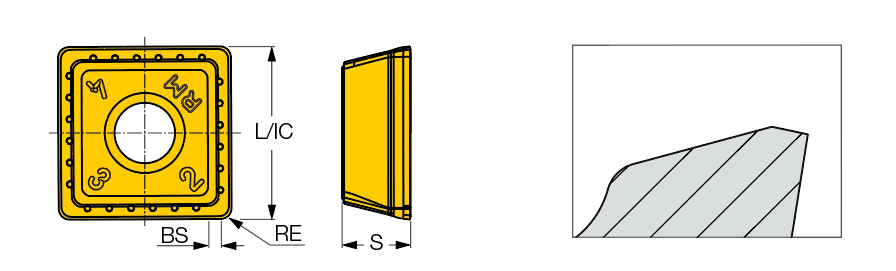

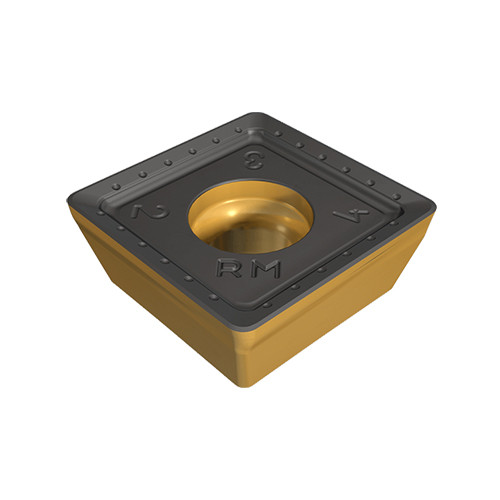

SDMT 1205PDN-RM-M IC910
Milling Insert; SDMT1205PDNRMM IC910 IC910 × 0.197″ Thickness ; Carbide ; AlTiN
| Applicable Material | | Steel | Cast Iron | | Shape | Square |
| Application | | Facing | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Insert Length (INSL) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.197″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Wiper Edge Length (BS) | 0.063″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
| Grade | IC910 |
Product Features
| Family Description | Insert with helical cutting edges for 90° shoulder milling | Country of Origin | Israel |
Shipping Info
Package Weight
0.018
