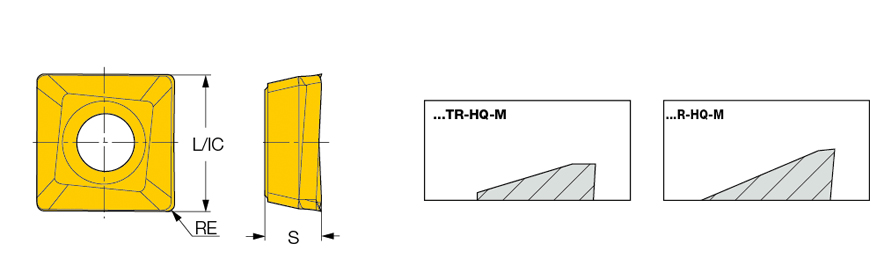

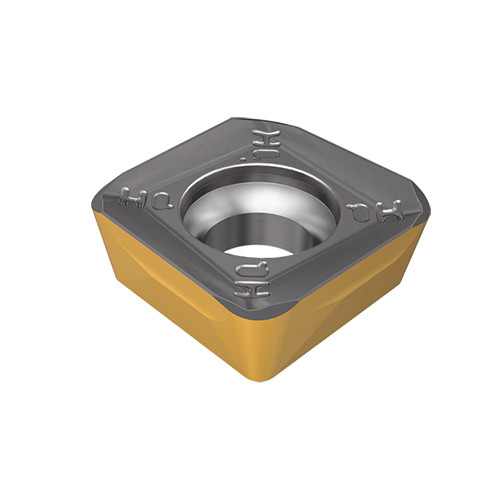

SPMT 100408R-HQ-M IC928
Milling Insert; SPMT100408RHQM IC928 IC928 × 0.167″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Square |
| Application | | Facing | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Insert Length (INSL) | 0.402″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.402″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.167″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 4 |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC928 | Body Material | Carbide |
Product Features
| Family Description | HELIQUAD Square positive inserts for right-hand tools for general use. | Country of Origin | Israel |
Shipping Info
Package Weight
0.01
