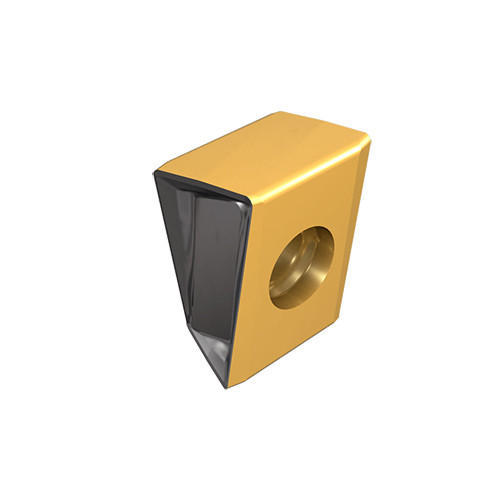

T490 LNHT 080412PNR IC808
Milling Insert; T490LNHT080412PNR IC808 IC808 × 0.167″ Width × 0.288″ Thickness ; Carbide ; TiAlN+AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC808 |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Shape | Rectangle |

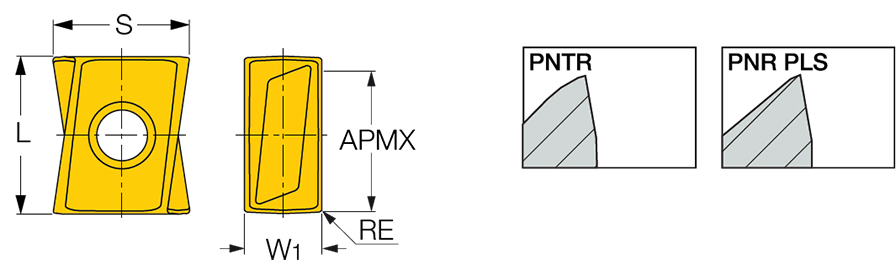

| Insert Length (INSL) | 0.338″ | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Corner Radius (RE) | 0.0472″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.315″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.167″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.288″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
Product Features
| Family Description | HELITANG - Tangentially clamped inserts with 4 helical cutting edges. The unique pocket design, prevents insert pull-out and enables tools with larger core diameters compared with regular radially orientated inserts. | Country of Origin | Israel |
| Remarks | LNMT-utility inserts, LNHT-precision inserts Click on More Info to see possible ramp down angle for T490 LN.. 080404PNR-RD inserts |
Shipping Info
Package Weight
0.007
