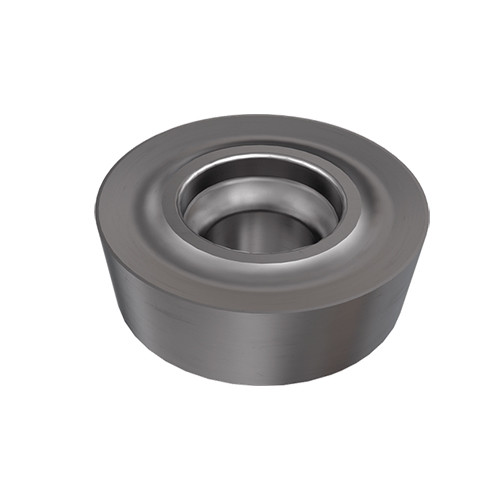

RCCT 1004MO IC830
Milling Insert; RCCT 1004MO IC830 IC830 × 0.126″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.1969″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.394″ | Minimum Feed per Tooth (fz(min)) | 0.0047 ″/tooth |
| Insert Thickness (S) | 0.126″ | Number of Cutting Edges | 8 |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
| Shape | Round |
Product Features
| Family Description | Round positive rake milling inserts with a bottom cylinder for improved clamping. RCMT - Positive rake and reinforced cutting edge, RCCT - Positive rake and sharp cutting edge, both used mainly on stainless steel. | Country of Origin | Israel |
| Remarks | RCMT - Positive rake and reinforced cutting edge RCCT - Positive rake and sharp cutting edge Both used mainly on stainless steel |
Shipping Info
Package Weight
0.010
