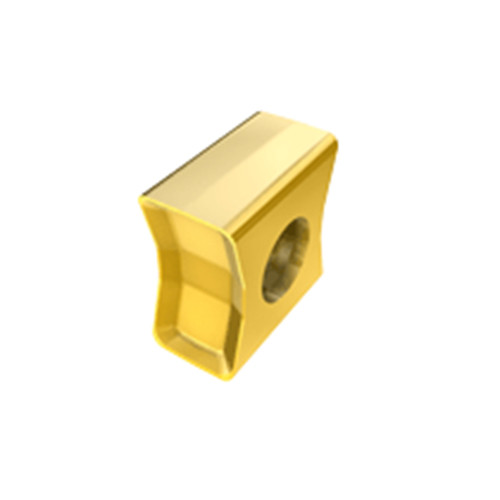

LNKX 1106PNTN MM IC910
Milling Insert; LNKX1106PNTN MMIC910 IC910 × 0.236″ Width × 0.433″ Thickness ; Carbide ; AlTiN
| Applicable Material | | Steel | Cast Iron | | Grade | IC910 |
| Application | | Chamfering & Bottom Deburring | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Shape | Rectangle |

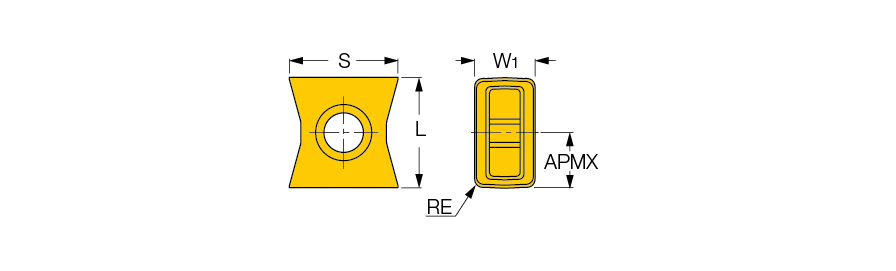

| Insert Length (INSL) | 0.439″ | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.197″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0067 ″/tooth |
| Insert Thickness (S) | 0.433″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
Product Features
| Family Description | TANGMILL Tangentially clamped inserts, peripherally ground with a very positive chipformer and a reinforced cutting edge. Feature low cutting forces and excellent surface finish. | Country of Origin | Israel |
| Remarks | Molded chipformer to produce positive cutting Reduced cutting forces enables higher feed capability LNKX... is peripherally ground for accuracy and improved surface finish LNMT... is an economical utility insert LNKX1106PNTN MM insert has a reinforced, chamfered land 4 R.H. and 4 L.H. cutting edges when used on F90LN... cutters |
Shipping Info
Package Weight
0.018
