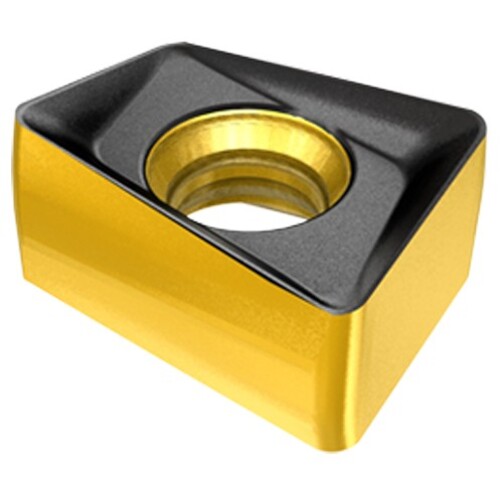

H490 ANCX 090416PDR IC330
Milling Insert; H490ANCX090416PDRIC330 IC330 × 0.256″ Width × 0.185″ Thickness ; Carbide ; TiCN+TiN
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Grade | IC330 |
| Application | | Counter Boring | Facing | Milling Inserts | Shouldering | Slotting | | Shape | 85° Parallelogram |
| Insert Length (INSL) | 0.335″ | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Corner Radius (RE) | 0.063″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.315″ | Tool Type | Double sided Inserts |
| Insert Width (W1) | 0.256″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.185″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | TiCN+TiN |
Product Features
| Family Description | Double-sided rectangular inserts with 4 helical cutting edges. Very strong construction, may be used for heavy applications. (HELIDO 490 line). | Country of Origin | Israel |
| Remarks | ANKX-Utility inserts, ANCX-Precision inserts. |
Shipping Info
Package Weight
0.007
