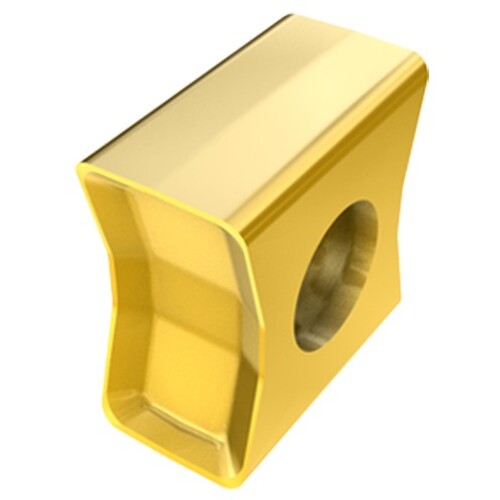

LNMT 1106PN-N MM IC4050
Milling Insert; 0.439″ Length × 0.236″ Width × 0.433″ Thickness ; IC4050 ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Grade | IC4050 |
| Application | | Facing | Milling Inserts | Profiling | | Shape | Rectangle |
| Cutting Edge Length (L) | 0.439″ | Maximum Feed per Tooth (fz(max)) | 0.0098 inch/tooth |
| Corner Radius (RE) | 0.031″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.197″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0067 inch/tooth |
| Insert Thickness (S) | 0.433″ | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
Product Features
| Family Description | TANGMILL Tangentially clamped inserts, peripherally ground with a very positive chipformer and a reinforced cutting edge. Feature low cutting forces and excellent surface finish. | Country of Origin | Israel |
| Remarks | Molded chipformer to produce positive cutting Reduced cutting forces enables higher feed capability LNKX... is peripherally ground for accuracy and improved surface finish LNMT... is an economical utility insert LNKX1106PNTN MM insert has a reinforced, chamfered land 4 R.H. and 4 L.H. cutting edges when used on F90LN... cutters |
Shipping Info
Package Weight
0.017
