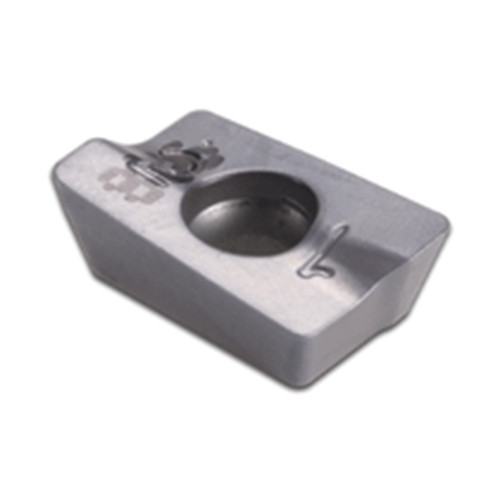

HM90 APKW 1003PDR IC910
Milling Insert; HM90APKW1003PDR IC910 IC910 0.452″ Length × 0.266″ Width × 0.138″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Cast Iron | | Shape | 85° Parallelogram |
| Application | | Countersinking | Facing | Milling Inserts | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |

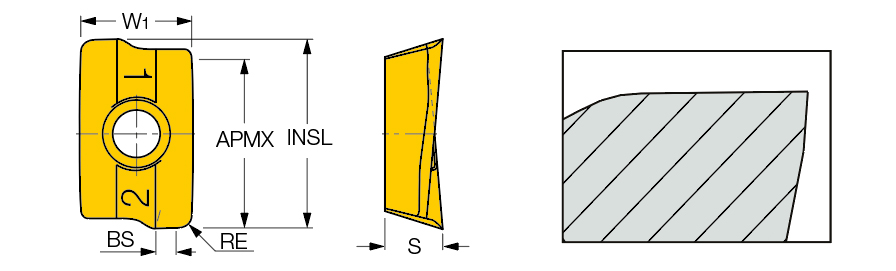

| Cutting Edge Length (L) | 0.452″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.452″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.315″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Width (W1) | 0.266″ | Cutting Edge Effective Length (LE) | 0.404″ |
| Insert Thickness (S) | 0.138″ | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
| Grade | IC910 |
Product Features
| Family Description | HELI2000 inserts with a reinforced edge and flat rake, used for hardened steel and milling at heavy interrupted cut. | Country of Origin | Israel |
| Remarks | Reinforced cutting edge, resistant to edge breakage and chipping Recommended for milling at unfavorable conditions and heavy interrupted cut Different corner radii can be ground |
Shipping Info
Package Weight
0.008
