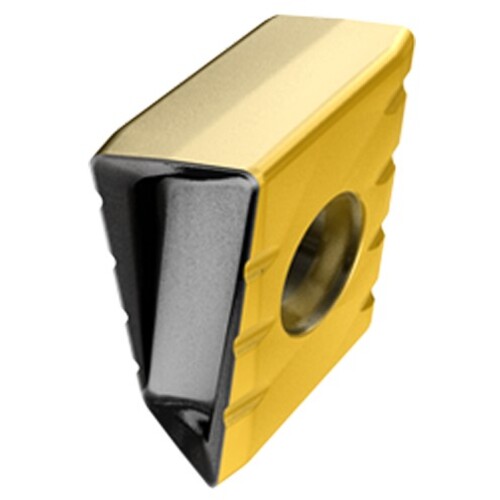

T490 LNMT 1306PNTR IC4050
Milling Insert; 0.541″ Length × 0.262″ Width × 0.514″ Thickness ; IC4050 ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Shape | Rectangle |
| Application | | Facing | Milling Inserts | Profiling | | Maximum Feed per Tooth (fz(max)) | 0.0098 inch/tooth |
| Cutting Edge Length (L) | 0.541″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.031″ | Tool Type | Mill Tangential Inserts |
| Depth of Cut Maximum (APMX) | 0.492″ | Figure | 1 |
| Insert Width (W1) | 0.262″ | Minimum Feed per Tooth (fz(min)) | 0.0039 inch/tooth |
| Insert Thickness (S) | 0.514″ | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC4050 |
Product Features
| Family Description | HELITANG - Tangentially clamped inserts with 4 helical cutting edges. The unique pocket design prevents insert pull-out and enables tools with larger core diameters compared with regular radially orientated inserts. | Country of Origin | Israel |
| Remarks | LNMT-utility inserts. LNHT-precision inserts. |
Shipping Info
Package Length
1.00000
Package Width
1.00000
Package Height
1.00000
Package Weight
0.022
