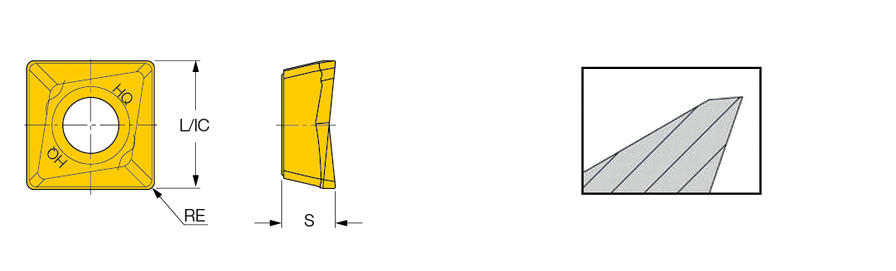

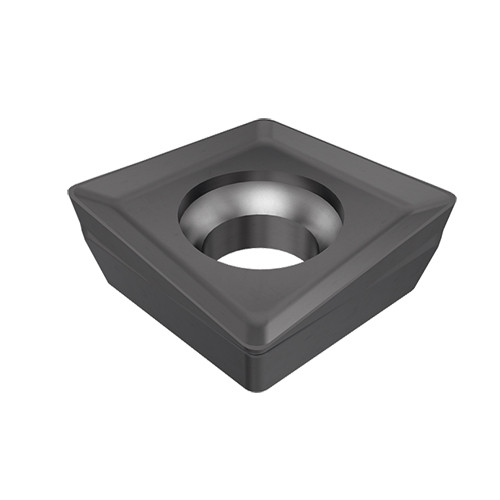

XPMT 100408-HQ IC950
Milling Insert; XPMT100408THQ IC950 IC950 × 0.162″ Thickness ; Carbide
| Applicable Material | | Steel | Cast Iron | | Shape | Special |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Insert Length (INSL) | 0.402″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0236″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.315″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Inscribed Circle Diameter (IC) | 0.402″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.162″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Grade | IC950 |
Product Features
| Family Description | Insert with 2 right- or left-Hand cutting edges with positive land | Country of Origin | Israel |
Shipping Info
Package Weight
0.007
