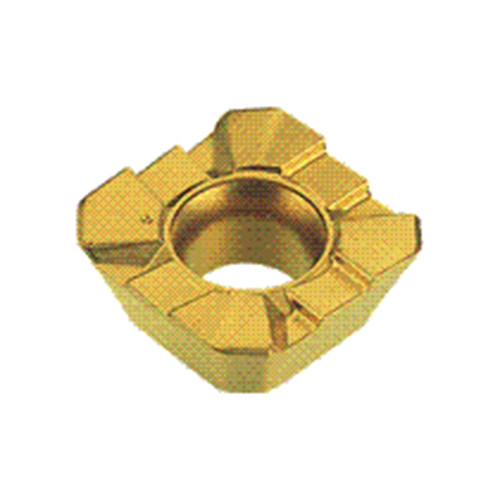

SEMT 43AF-R-HS IC928
Milling Insert; SEMT43AFRHS IC928 IC928 × 0.187″ Thickness ; Carbide ; TiAlN

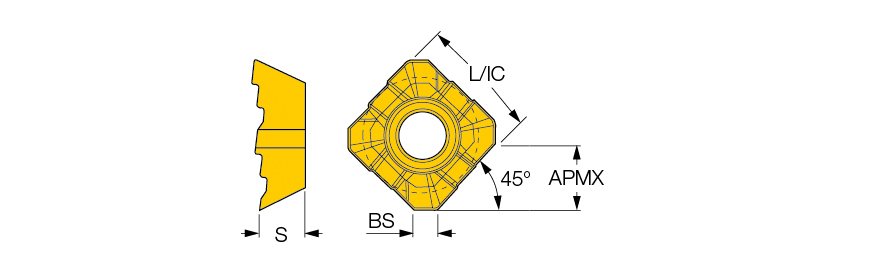

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Square |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Insert Length (INSL) | 0.498″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.236″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.498″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.187″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Wiper Edge Length (BS) | 0.089″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC928 |
Product Features
| Family Description | Square milling inserts with a chip splitting serrated cutting edge for 45° roughing | Country of Origin | Israel |
Shipping Info
Package Weight
0.015
