S845 SNMU 1305ANR-MM 4050

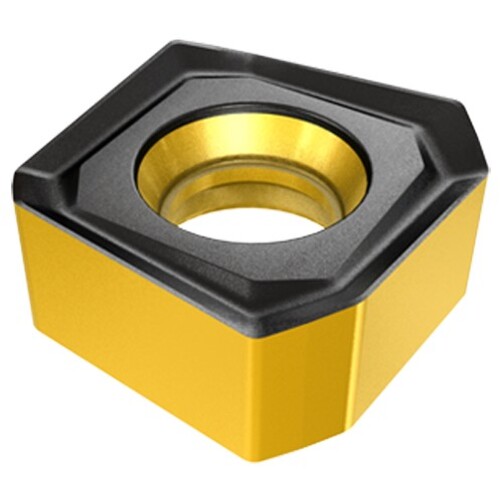

Milling Insert; S845SNMU1305ANRMM IC4050 IC4050 × 0.244″ Thickness
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Grade | IC4050 |
| Application | | Facing | Fast Feed Milling | Slanted Shoulder & Chamfer | | Shape | Square |
| Corner Radius (RE) | 0.031″ | Maximum Feed per Tooth (fz(max)) | 0.0157 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.236″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.512″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.244″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
Product Features
| Family Description | Square double-sided inserts with 8 cutting edges (HELIDO 845 line). | Country of Origin | Israel |
| Remarks | S845 SNHU - Precision ground S845 SNMU - Utility |
Shipping Info
Package Weight
0.021
