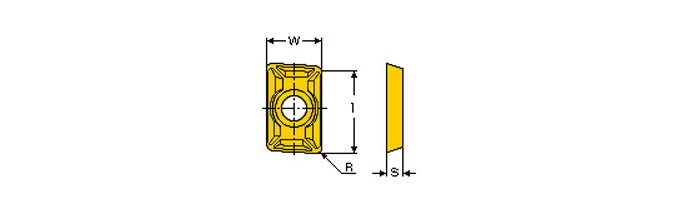

ADMM 150308-88 IC635
| Applicable Material | Steel|Stainless Steel | Shape | 85° Parallelogram |
| Application | | Facing | Milling Inserts | Profiling | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Cutting Edge Length (L) | 0.591″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.031″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 3/8″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Insert Thickness (S) | 1/8″ | Measurement Type | Metric |
| Coating | TiN|TiC|TiN | Body Material | Carbide |
| Grade | IC635 |
Product Features
| Family Description | HELIMILL general use milling insert. | Country of Origin | IL |
Shipping Info
Package Weight
.0098
