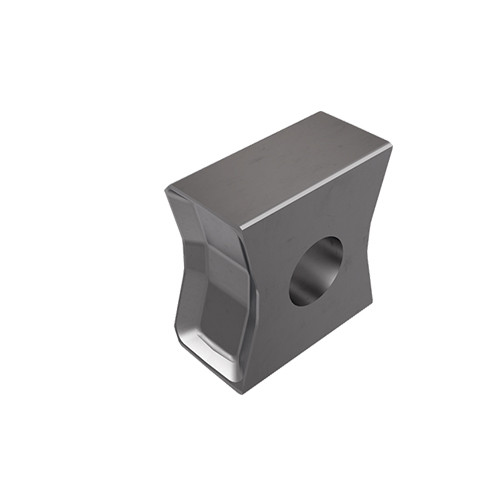

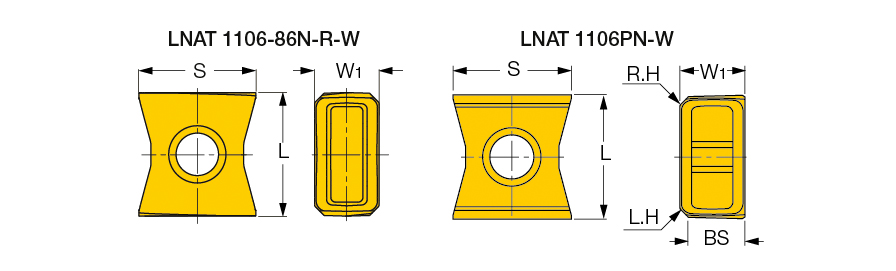

LNAT 1106-86N-R-W IC908
Milling Insert; LNAT110686NRW IC908 IC908 × 0.235″ Width × 0.425″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | Rectangle |
| Application | | Facing | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Insert Length (INSL) | 0.449″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.235″ | Tool Type | Mill Tangential Inserts |
| Insert Thickness (S) | 0.425″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Wiper Edge Length (BS) | 0.087″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 |
Product Features
| Family Description | Tangentially clamped wiper inserts. 2 R.H. and 2 L.H. cutting edges. Use only one wiper insert when feed per revolution is less than .157″. | Country of Origin | Israel |
| Remarks | When feed per revolution is less than .157 it is recommended to use only one wiper insert. When feed per revolution is greater than .157, it is recommended to use two wiper inserts. |
Shipping Info
Package Weight
0.018
