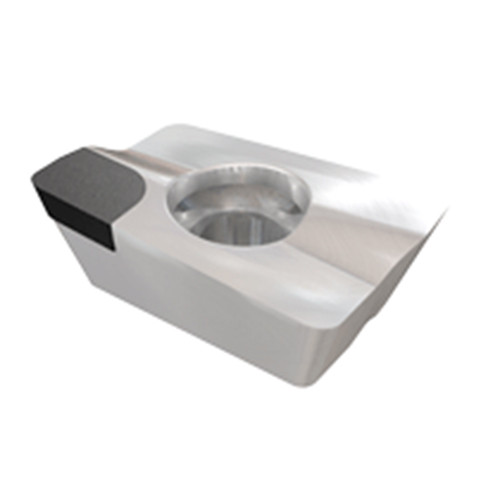

ADKW 1505 PDER IB85
Milling Insert; 0.637″ Length × 0.378″ Width × 0.23″ Thickness ; IB85 ; PCBN ; Uncoated
| Applicable Material | | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Cutting Edge Length (L) | 0.637″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.637″ | Cutting Edge Material | PCBN |
| Corner Radius (RE) | 0.0315″ | Tool Type | Mill Ultra hard Inserts |

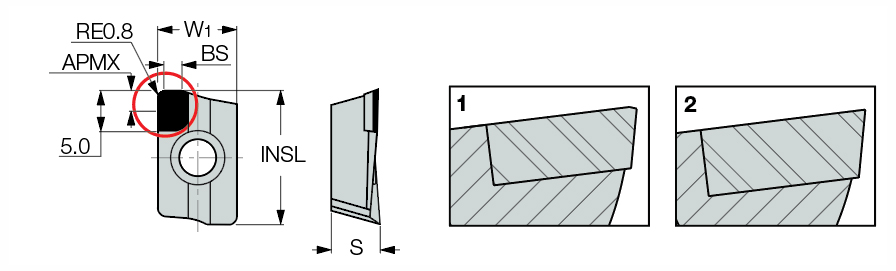

| Depth of Cut Maximum (APMX) | 0.177″ | Figure | 2 |
| Insert Width (W1) | 0.378″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.23″ | Number of Cutting Edges | 1 |
| Wiper Edge Length (BS) | 0.057″ | Cutting Edge Effective Length (LE) | 0.079″ |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | IB85 | Body Material | Carbide |
Product Features
| Family Description | Single corner R.H. inserts with an IB85 PCBN brazed tip insert, for machining hardened and cast steel with over 45 HRc, grey and nodular cast iron, powder compacted and sintered metals and heat resistant alloys. | Country of Origin | Italy |
| Remarks | Inserts are supplied with spare screws. For D.O.C and cutting speed data, see More Info |
Shipping Info
Package Weight
0.035
