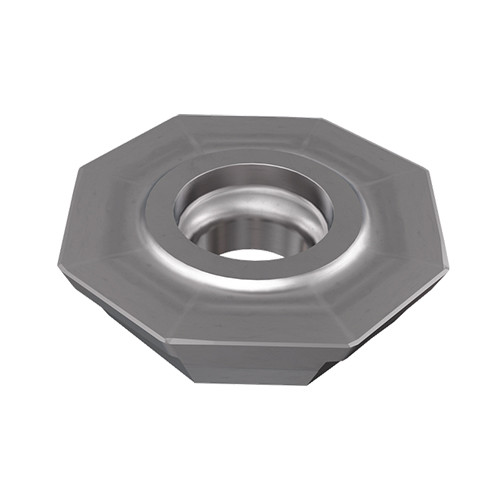

OFCR 07T3-RW-P IC28
Milling Insert; OFCR07T3-RW-P IC28 IC28 × 0.18″ Thickness ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | IC28 |
| Application | | Facing | Slanted Shoulder & Chamfer | | Shape | 135° Octagon |

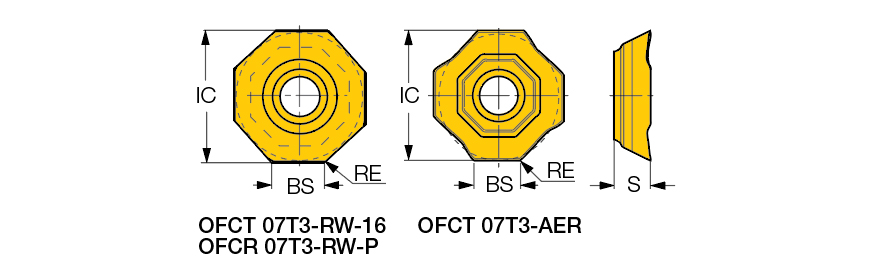

| Corner Radius (RE) | 0.0236″ | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.0984″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.726″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.18″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Wiper Edge Length (BS) | 0.268″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | HELIOCTO, Octagonal milling inserts with four wiper cutting edges. Used for finishing operations requiring very good surface quality. | Country of Origin | Israel |
| Remarks | Maximum depth of cut when using the wiper insert is .098. It is recommended to use wiper insert in ap=.02-.039 in order to achieve the best results. |
Shipping Info
Package Weight
0.03
