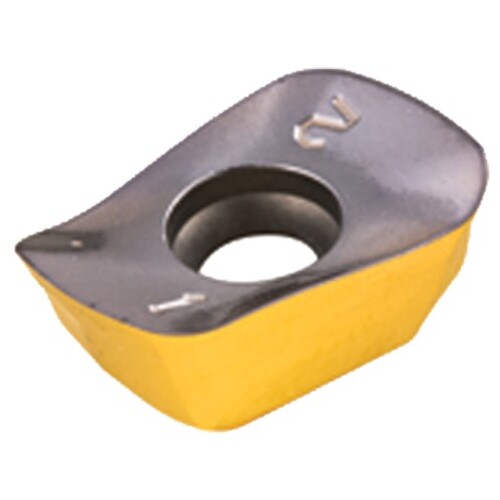

ADCT 1505R8T-FF IC830
Milling Insert; ADCT 1505R8TFF IC830 IC830 0.618″ Length × 0.39″ Width × 0.24″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Grade | IC830 |
| Application | | Facing | Fast Feed Milling | Milling Inserts | Rampdown | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.618″ | Maximum Feed per Tooth (fz(max)) | 0.0472 ″/tooth |
| Insert Length (INSL) | 0.618″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.1063″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.059″ | Minimum Feed per Tooth (fz(min)) | 0.0315 ″/tooth |
| Insert Width (W1) | 0.39″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.24″ | Body Material | Carbide |
| Coating | AlTiN+TiN |
Product Features
| Family Description | Inserts for fast feed milling. | Country of Origin | Israel |
| Remarks | The cutting diameter of the tool is .02″ larger than the nominal diameter when using this insert. Tool corner should be modified to .08″. At D.O.C. larger than apmax, regular insert feed should be applied. |
Shipping Info
Package Weight
0.019
