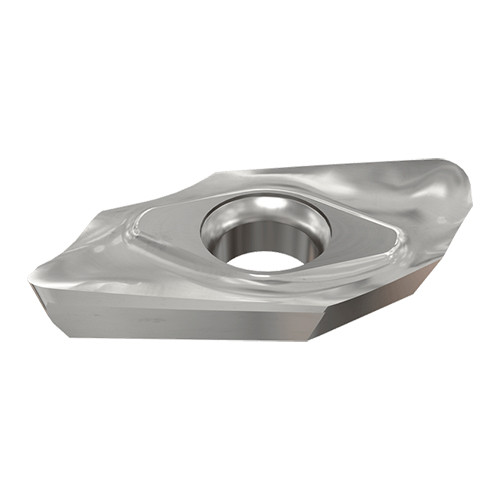

HM90 APCR 160520R-P IC08
Milling Insert; 1″ Length × 0.504″ Width × 0.189″ Thickness ; IC08 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | IC08 |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shape | 85° Parallelogram |

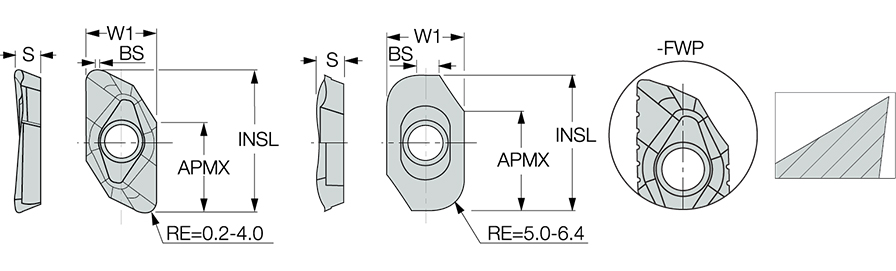

| Cutting Edge Length (L) | 1″ | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Insert Length (INSL) | 1″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0787″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.6102″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Width (W1) | 0.504″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.189″ | Cutting Edge Effective Length (LE) | 0.618″ |
| Wiper Edge Length (BS) | 0.039″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | HELIALU super positive and polished rake inserts for machining aluminum | Country of Origin | Israel |
| Remarks | It is recommended to use the insert and screw set when machining at very high cutting speeds (see HSM90 SET) |
Shipping Info
Package Weight
0.026
