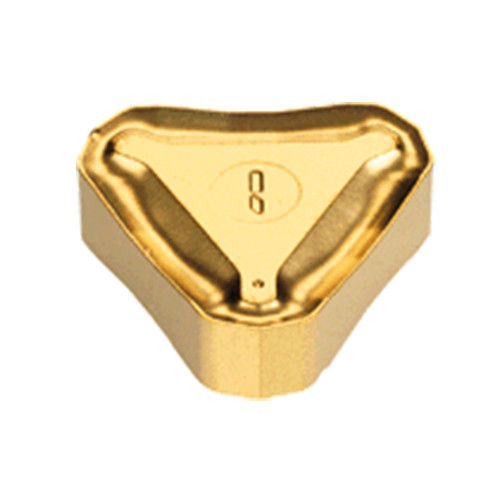

TNMF 43AN-LM IC910
Milling Insert; TNMF43ANLM IC910MILLING IC910 × 0.187″ Thickness ; Carbide ; AlTiN

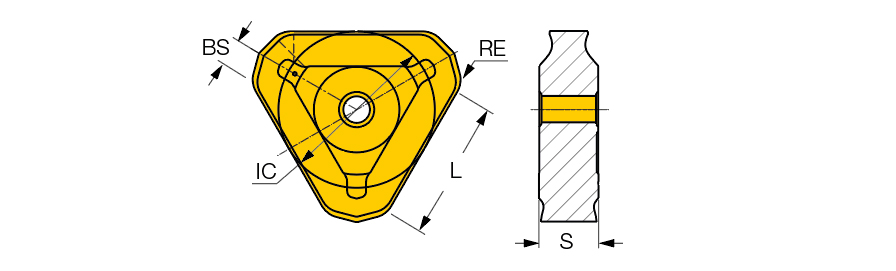

| Applicable Material | | Steel | Cast Iron | | Grade | IC910 |
| Application | | Facing | Slanted Shoulder & Chamfer | | Shape | Triangle |
| Insert Length (INSL) | 0.422″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0827″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.187″ | Number of Cutting Edges | 3 |
| Wiper Edge Length (BS) | 0.059″ | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
Product Features
| Family Description | Double-sided face milling insert for machining cast iron, used mainly by the automotive industry. | Country of Origin | Israel |
Shipping Info
Package Weight
0.028
