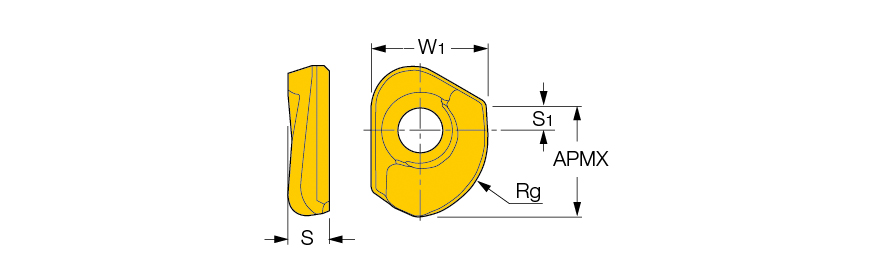

CR D080/.31-MS IC328
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |
| Application | | Profiling | | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.213″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.248″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.079″ | Minimum Feed per Tooth (fz(min)) | 0.0016 ″/tooth |
| Coating | TiCN | Number of Cutting Edges | 1 |
| Grade | IC328 | Measurement Type | Inch |
| Shape | Round | Body Material | Carbide |
Product Features
| Family Description | HELIBALL, Ball nose .315″ diameter profiling insert. | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
