RFMW 1905 IC328
Milling Insert; RFMW1905 IC328 IC328 × 0.215″ Thickness ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Cutting Edge Material | Carbide |

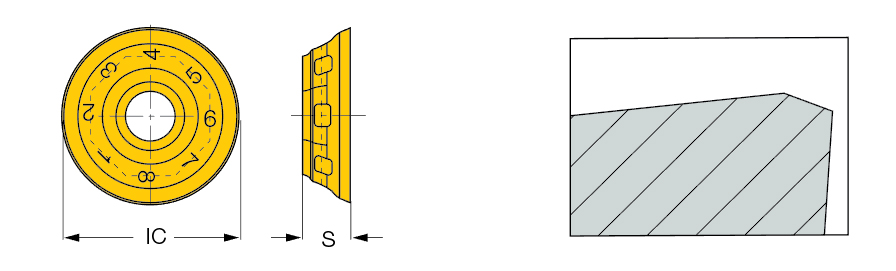

| Corner Radius (RE) | 0.3886″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.777″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.215″ | Number of Cutting Edges | 8 |
| Coating | TiCN | Measurement Type | Inch |
| Grade | IC328 | Body Material | Carbide |
| Shape | Round |
Product Features
| Family Description | HELIOCTO, Round inserts with a reinforced flat rake for profile milling. Used for machining different types of steel and cast iron. | Country of Origin | Israel |
Shipping Info
Package Weight
0.038
