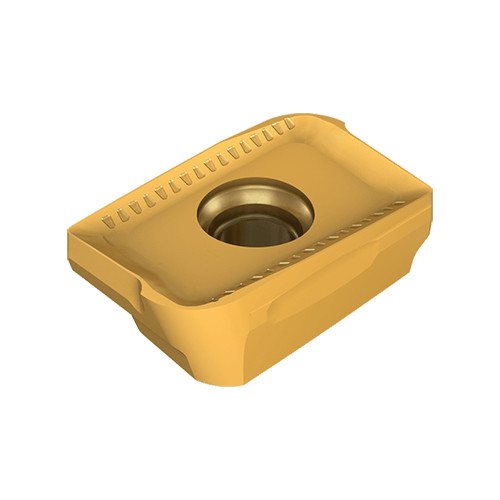

3M AXKT 130416R-PDRMM IC928
Milling Insert; 0.531″ Length × 0.331″ Width × 0.172″ Thickness ; IC928 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC928 |
| Application | | Counter Boring | Facing | Shouldering | Slanted Shoulder & Chamfer | | Shape | 85° Parallelogram |

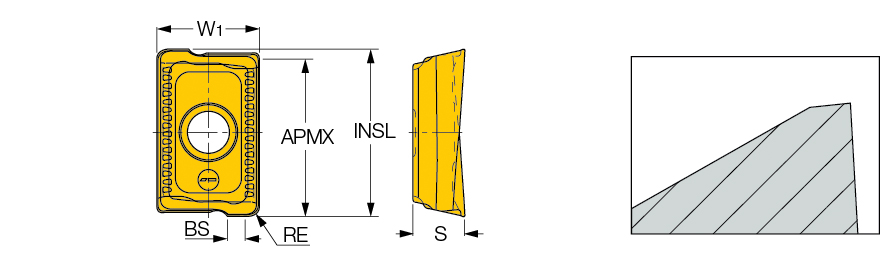

| Cutting Edge Length (L) | 0.531″ | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Insert Length (INSL) | 0.531″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.063″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.472″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Width (W1) | 0.331″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.172″ | Cutting Edge Effective Length (LE) | 0.504″ |
| Wiper Edge Length (BS) | 0.031″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | MILL2000 Inserts with a variety of corner radii. Heavy duty design: dovetail section shape, helical cutting edge and positive rake angle. Enables secure clamping and high durability in rough applications. | Country of Origin | Israel |
| Remarks | Reduce feed by 50% during engagement and exit from the workpiece; this practice will substantially increase insert life Inserts with corner radii larger than .031 should be used on 3M SM-13 and 3M AXK tools only on the face of the cutter. |
Shipping Info
Package Weight
0.012
