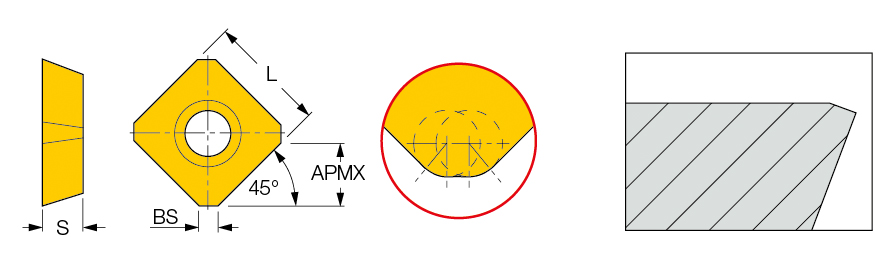

SEMT 12T3AFTN-76
Milling Insert; 0.518″ Length × 0.146″ Thickness ; IC950 ; Carbide ; TiCN
| Applicable Material | Steel|Cast Iron | Grade | IC950 |
| Application | | Facing | Milling Inserts | Profiling | | Shape | Square |
| Cutting Edge Length (L) | 0.518″ | Maximum Feed per Tooth (fz(max)) | 0.0079 inch/tooth |
| Corner Radius (RE) | 7.94 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.256″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.146″ | Minimum Feed per Tooth (fz(min)) | 0.0047 inch/tooth |
| Wiper Edge Length (BS) | 0.087″ | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
Product Features
| Family Description | Milling inserts with ribs along edges - reducing heat transfer. Used for heavy machining. | Country of Origin | Israel |
| Remarks | Use optional TSE 12T3-N seat on F45ST cutters. |
Shipping Info
Package Weight
0.013
