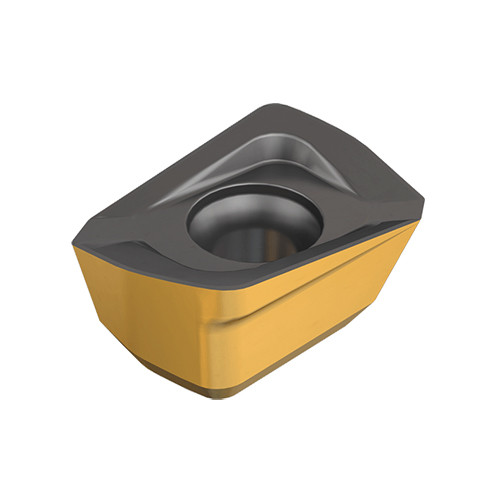

H490 ANKX 1706R15T-FF IC5400
Milling Insert; 0.661″ Length × 0.461″ Width × 0.307″ Thickness ; IC5400 ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | | Steel | Stainless Steel | | Grade | IC5400 |
| Application | | Facing | Fast Feed Milling | Rampdown | | Shape | 85° Parallelogram |

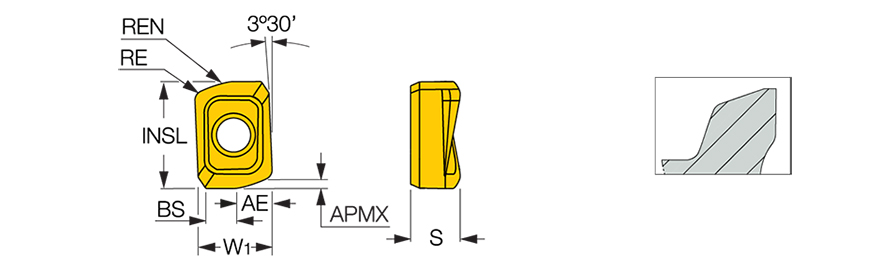

| Cutting Edge Length (L) | 0.661″ | Maximum Feed per Tooth (fz(max)) | 0.0787 ″/tooth |
| Insert Length (INSL) | 0.661″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.063″ | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.063″ | Minimum Feed per Tooth (fz(min)) | 0.0394 ″/tooth |
| Insert Width (W1) | 0.461″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.307″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.181″ | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN |
Product Features
| Family Description | HELIDO, single-sided rectangular inserts with 2 helical cutting edges. Very strong construction. Used for very high feed milling at small depths of cut. | Country of Origin | Israel |

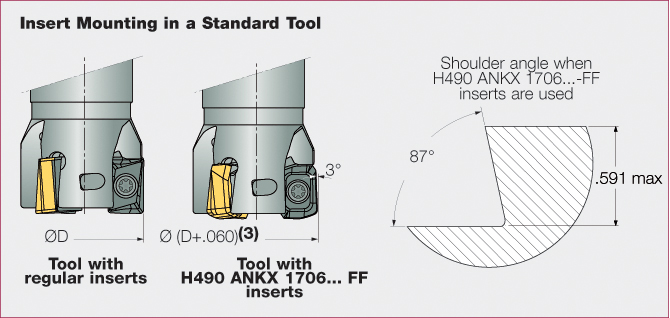

| Remarks | The cutting diameter of the tool is .06 larger than the nominal diameter when using this insert No tool radius modifications is required At D.O.C. larger than APMX, regular insert feed should be applied. |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.030
Related Documentation
The cutting diameter of the tool is 1.5 mm larger than the nominal diameter when using this insert.
