P290 ACKT 1806PDR-FW IC810

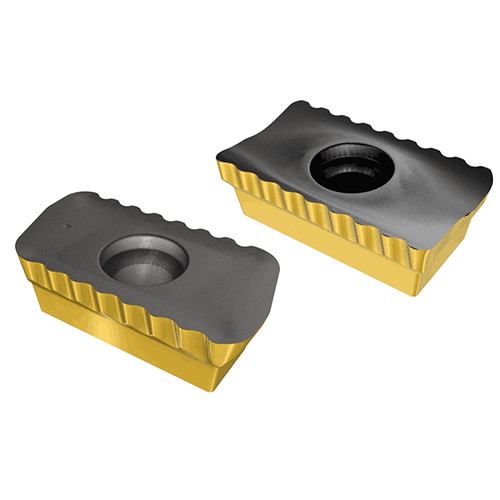

Single-sided rectangular inserts with 2 serrated cutting edges
| Applicable Material | | Steel | Cast Iron | | Shape | 85° Parallelogram |
| Application | | Facing | Profiling | Rampdown | Shouldering | | Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |

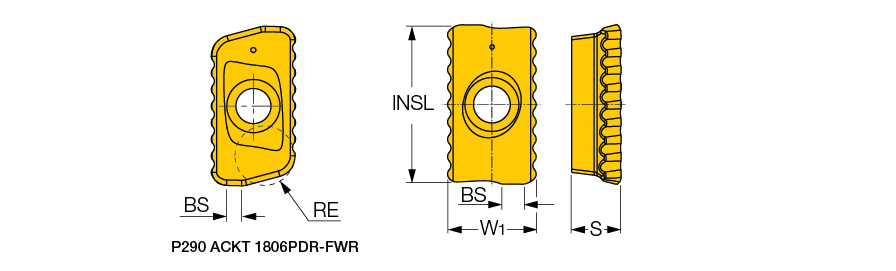

| Cutting Edge Length (L) | 0.728″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.728″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0472″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.709″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Width (W1) | 0.421″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.236″ | Cutting Edge Effective Length (LE) | 0.709″ |
| Coating | AlTiCrN+TiN | Measurement Type | Inch |
| Grade | IC810 | Body Material | Carbide |
Product Features
| Family Description | Single-sided rectangular inserts with 2 serrated cutting edges | Country of Origin | Israel |
Shipping Info
Package Weight
0.032
