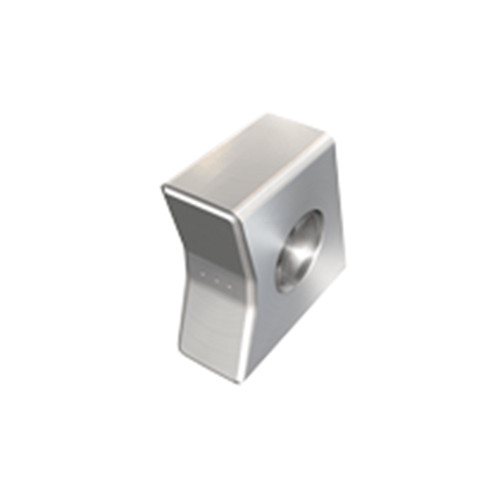

LNHT 1506PN-N-HT-S IC328
Milling Insert; LNHT1506PNNHTS IC328 IC328 × 0.236″ Width × 0.587″ Thickness ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC328 |
| Application | | Facing | Side Slotting | Slotting | T Slotting | | Shape | Rectangle |

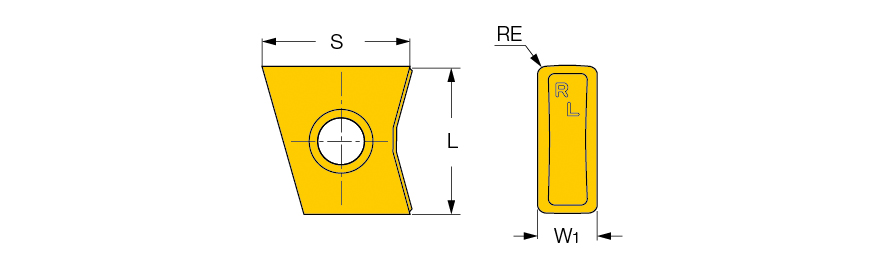

| Insert Length (INSL) | 0.591″ | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.551″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.587″ | Number of Cutting Edges | 2 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
Product Features
| Family Description | TANGMILL, Tangentially clamped inserts with 2 straight cutting edges for deep and long steel slots. | Country of Origin | Israel |
Shipping Info
Package Weight
0.030
