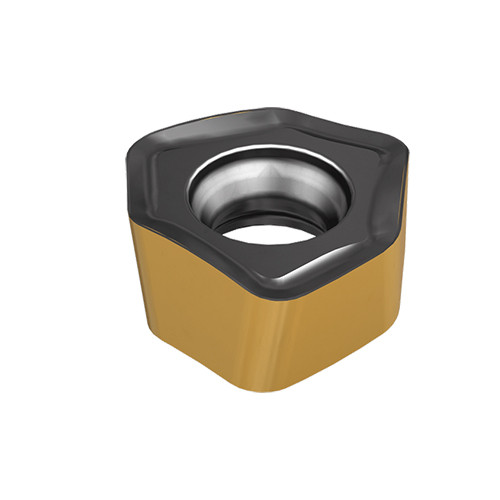

H600 WXCU 070515HP IC830
Milling Insert; H600 WXCU 070515HP IC830 IC830 × 0.232″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0338 ″/tooth |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Cutting Direction (HAND) | Right Hand |

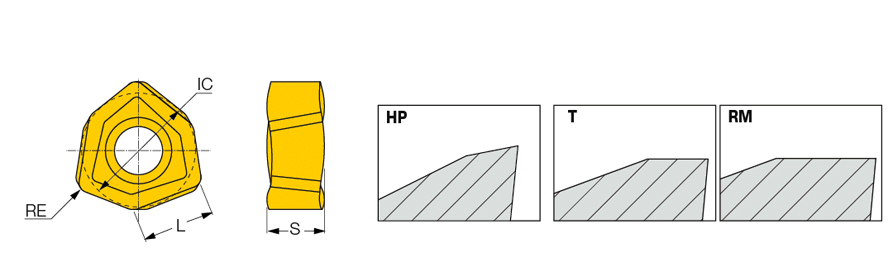

| Insert Length (INSL) | 0.282″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.059″ | Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 0.439″ | Minimum Feed per Tooth (fz(min)) | 0.0134 ″/tooth |
| Insert Thickness (S) | 0.232″ | Number of Cutting Edges | 6 |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
| Shape | 80° Trigon |
Product Features
| Family Description | Double-sided inserts with 6 cutting edges for fast feed machining | Country of Origin | Israel |
| Remarks | HP - for stainless steel and high temperature alloys T - for alloy steel and cast iron (I mark on top rake face for identification) RM - for interrupted cut and hard materials For cutting conditions click on More info |
Shipping Info
Package Weight
0.014
