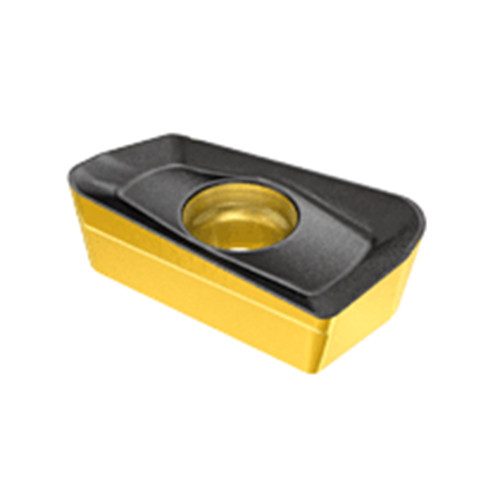

HP ANKT 070208PNTR IC908
Milling Insert; 0.343″ Length × 0.177″ Width × 0.102″ Thickness ; IC908 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC908 |
| Application | | Counter Boring | Facing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Shape | 85° Parallelogram |

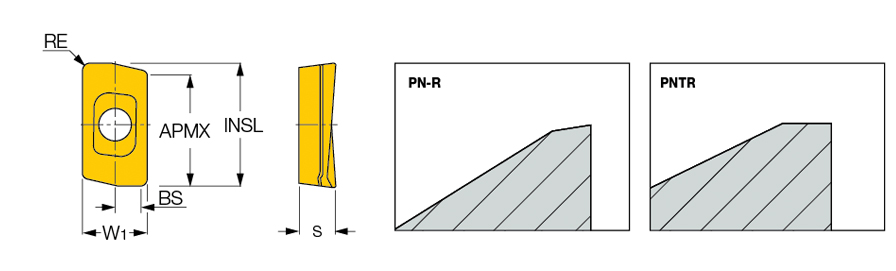

| Cutting Edge Length (L) | 0.343″ | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Insert Length (INSL) | 0.343″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.303″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Width (W1) | 0.177″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.102″ | Cutting Edge Effective Length (LE) | 0.303″ |
| Wiper Edge Length (BS) | 0.039″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | HELIPLUS inserts with a .276″ helical edge and various corner radii for general use. | Country of Origin | Israel |
Shipping Info
Package Length
.34000
Package Width
.17000
Package Height
.10000
Package Weight
0.005
