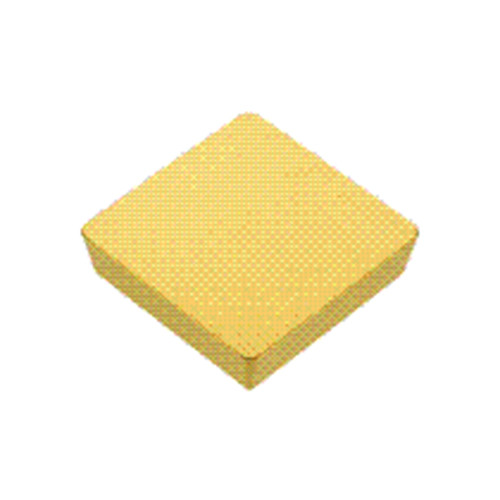

SEM 422 IC635
Milling Insert; SEM422 IC635 IC635 × 1/8″ Thickness ; Carbide ; TiN+TiC+TiN
| Applicable Material | | Steel | Stainless Steel | | Coating | TiN+TiC+TiN |
| Application | | Facing | Plunging & Recessing | Slanted Shoulder & Chamfer | | Grade | IC635 |

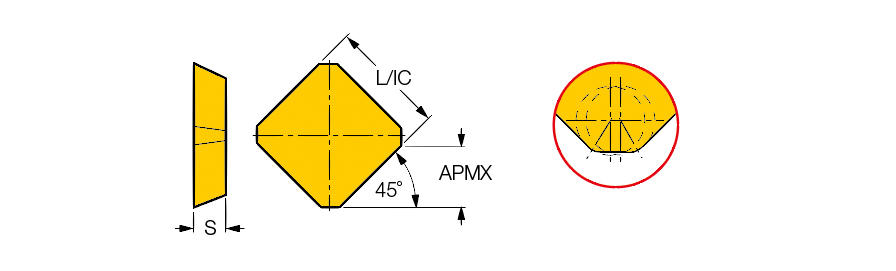

| Insert Length (INSL) | 1/2″ | Shape | Square |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.256″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 1/2″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 1/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
Product Features
| Family Description | Square milling inserts with different corner radii, used for heavy machining | Country of Origin | Israel |
Shipping Info
Package Weight
0.017
