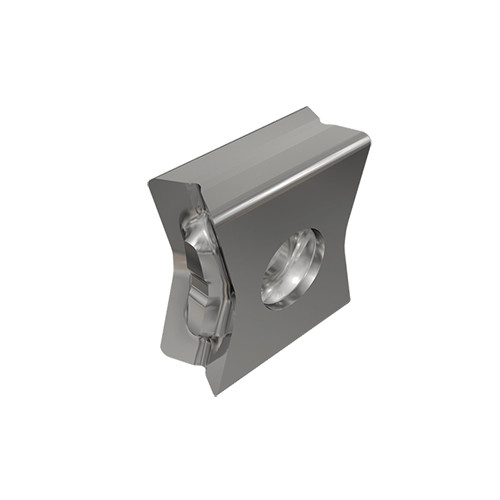

LNAR 1506 PN-N-P IC07
Milling Insert; LNAR1506 PN-N-P IC07 IC07 × 0.236″ Width × 0.534″ Thickness ; Carbide ; Uncoated
| Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | IC07 |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Shape | Rectangle |

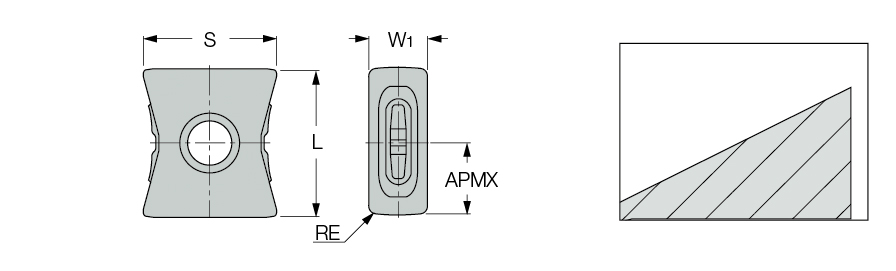

| Insert Length (INSL) | 0.591″ | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.276″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.534″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | Tangentially clamped inserts with positive polished land and a sharp cutting edge. Recommended for machining high silicon aluminum. 4 R.H. and 4 L.H. cutting edges when used on F90LN.. cutters. | Country of Origin | Israel |
| Remarks | Note: do not use this insert on F86LNX tools. |
Shipping Info
Package Weight
0.32
