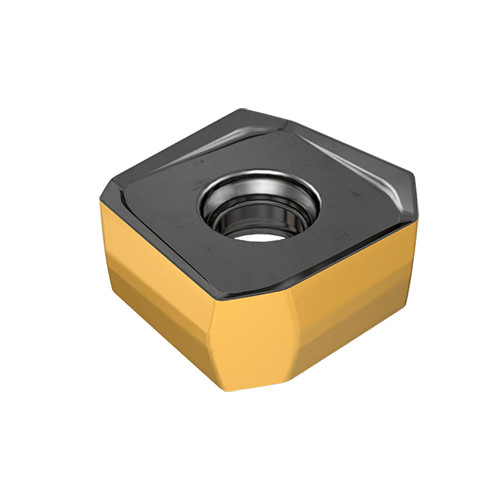

S845 SXCU 160608AD-RMM IC830
Milling Insert; S845SXCU160608ADRMM IC830 IC830 × 0.293″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Square |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0138 ″/tooth |

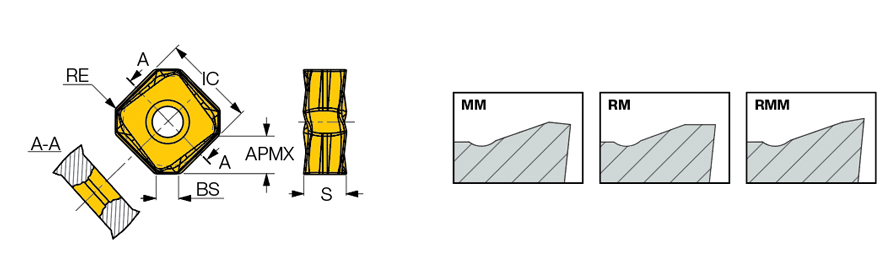

| Insert Length (INSL) | 0.644″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.281″ | Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 0.638″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Insert Thickness (S) | 0.293″ | Number of Cutting Edges | 8 |
| Wiper Edge Length (BS) | 0.112″ | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 |
Product Features
| Family Description | HELIDO, square, thick inserts with 8 helical right-hand cutting edges, providing a very economical 45° milling solution. | Country of Origin | Israel |
| Remarks | When a wiper insert is being used, recommended ap=.0315-.118 inch, fz=.0039-.0098 inch/t. |
Shipping Info
Package Weight
0.039
