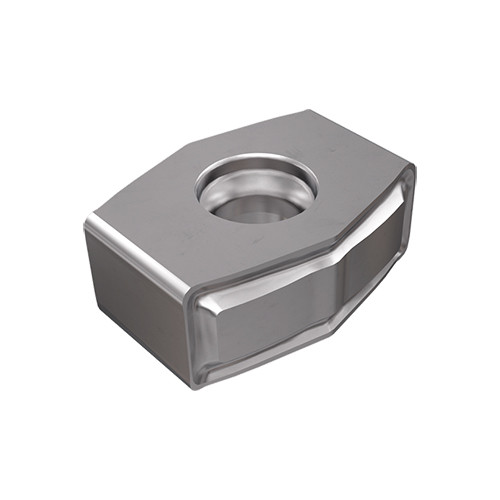

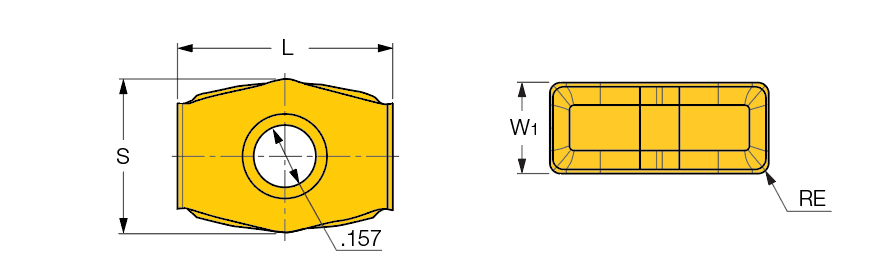

PLHT 1305-PDX IC328
Milling Insert; PLHT1305-PDX IC328 IC328 × 0.215″ Width × 0.392″ Thickness ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Round |
| Application | | Counter Boring | Drill Mill | Plunging & Recessing | Side Plunging | | Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |
| Insert Length (INSL) | 0.539″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0236″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.215″ | Tool Type | Mill Tangential Inserts |
| Insert Thickness (S) | 0.392″ | Minimum Feed per Tooth (fz(min)) | 0.0047 ″/tooth |
| Wiper Edge Length (BS) | 0″ | Number of Cutting Edges | 4 |
| Coating | TiCN | Measurement Type | Inch |
| Grade | IC328 | Body Material | Carbide |
Product Features
| Family Description | Tangentially clamped insert with 4 cutting edges for plungers. | Country of Origin | Israel |
Shipping Info
Package Weight
0.019
