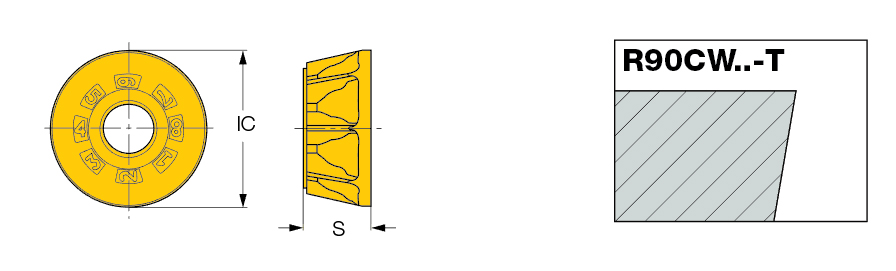

R90CW 1205-T
Milling Insert; R90CW 1205T IC328 IC328 × 0.197″ Thickness ; Carbide ; TiCN
| Applicable Material | Steel|Stainless Steel|Hi-Temp Alloys | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Maximum Feed per Tooth (fz(max)) | 0.0079 inch/tooth |
| Corner Radius (RE) | 7.94 mm | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.472″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.197″ | Minimum Feed per Tooth (fz(min)) | 0.0047 inch/tooth |
| Coating | TiCN | Measurement Type | Metric |
| Grade | IC328 | Body Material | Carbide |
Product Features
| Family Description | CHAMMILL round inserts with a flat rake, used for profile milling. | Country of Origin | Israel |
Shipping Info
Package Weight
0.012
