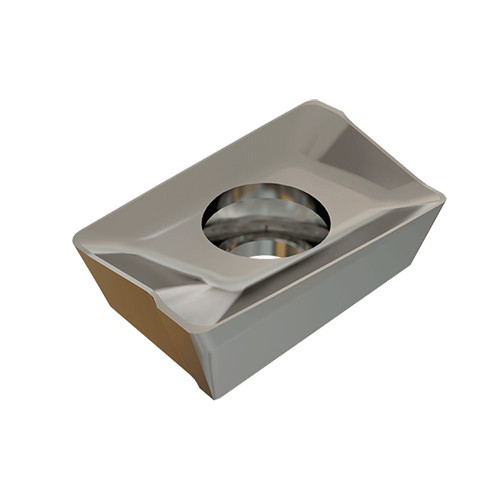

APCT 1003PDR-HM IC28
Milling Insert; 0.431″ Length × 0.264″ Width × 0.138″ Thickness ; IC28 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | 85° Parallelogram |
| Application | | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |

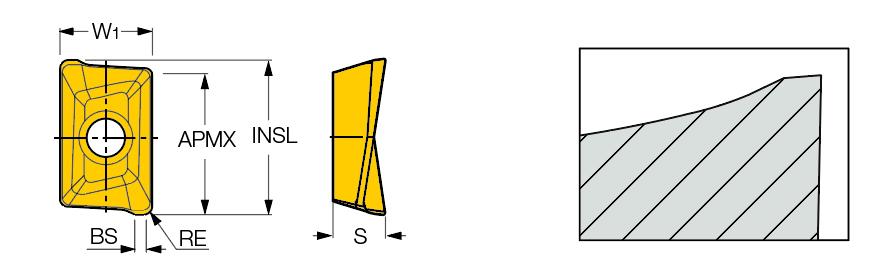

| Cutting Edge Length (L) | 0.431″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.431″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0197″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.3858″ | Minimum Feed per Tooth (fz(min)) | 0.0027 ″/tooth |
| Insert Width (W1) | 0.264″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.138″ | Cutting Edge Effective Length (LE) | 0.396″ |
| Wiper Edge Length (BS) | 0.047″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC28 |
Product Features
| Family Description | General-Use Inserts | Country of Origin | Israel |
Shipping Info
Package Weight
0.007
