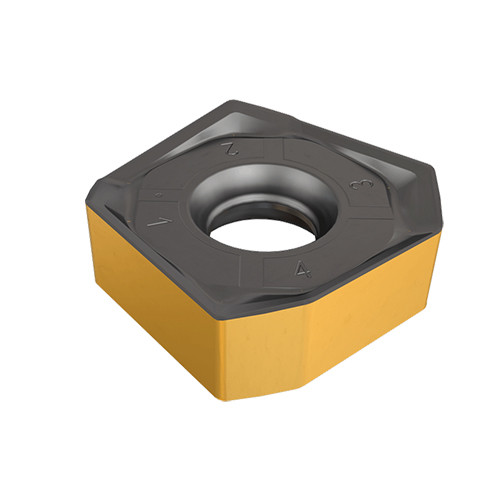

S845 SNMU 2608ANR-RM IC830
Milling Insert; S845SNMU2608ANRRM IC830 IC830 × 0.429″ Thickness ; Carbide ; TiAlN+TiN

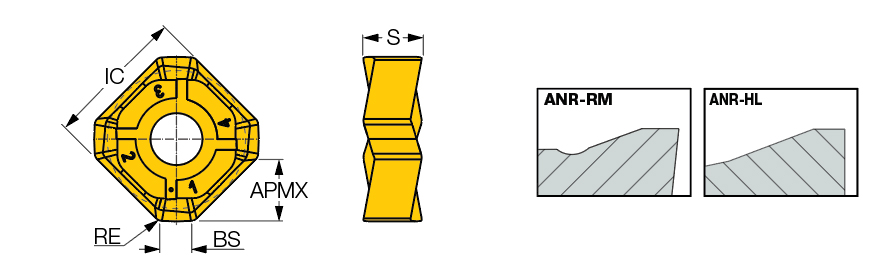

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Square |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0157 ″/tooth |
| Corner Radius (RE) | 0.063″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.433″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 1.035″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.429″ | Minimum Feed per Tooth (fz(min)) | 0.0098 ″/tooth |
| Wiper Edge Length (BS) | 0.102″ | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 |
Product Features
| Family Description | Heavy duty thick inserts with 8 helical right-hand cutting edges, providing a very economical 45° milling solution. | Country of Origin | Israel |
Shipping Info
Package Weight
0.139
